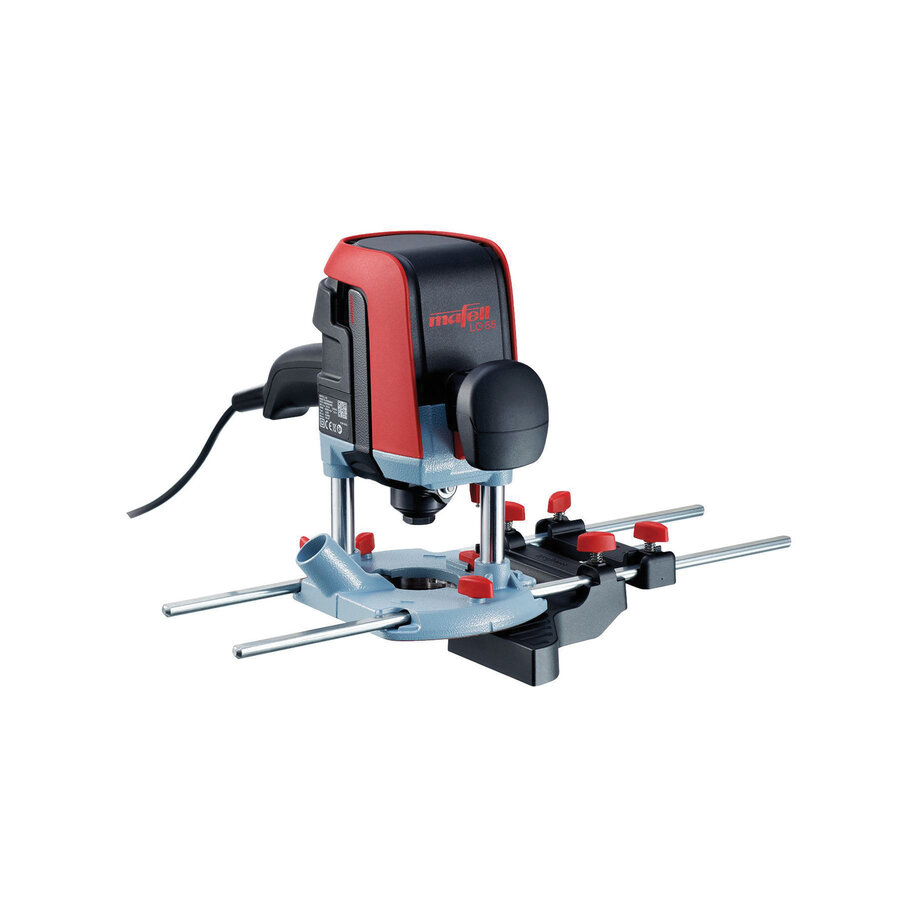

MAFELL - LO 55 U MAX3

Router

Product ID: 91A901 - MAFELL

Looking for greater versatility? The LO 55 offers exceptional handling and is ideal for both workshop and on-site applications. Its Ergo-Balance concept provides optimal balance, reduces vibration, and ensures stable operation. The stepped depth stop allows precise repeatability of routing depth, with additional locking for dovetail work. When used with the LO-FA adapter and F-LR guide rail, it enables accurate line boring, while the Permafix lock can be easily disengaged for faster operation.

Special features

■ Fast router bit changes by releasing the clamping lever.

■ Integrated dust extraction for efficient chip removal.

■ Permafix adjustment knob for easy routing depth adjustment.

■ Integrated LED lights for optimal illumination of the work area.

■ Parallel guide secured with two wing screws.

Technical specifications

Tool holder: Ø 8 mm

Routing depth: 0–55 mm

No-load speed: 10,000–24,000 rpm

Rated power: 1,100 W

Dust extraction connection: Ø 29 mm

Weight: 3.1 kg

Universal motor: 230 V / 50 Hz

APPLICATIONS

Routing grooves
Cutting recesses
Rebating
Edge profiling
Chamfering
Line boring

Suitable for solid wood and wood-based panel materials.
