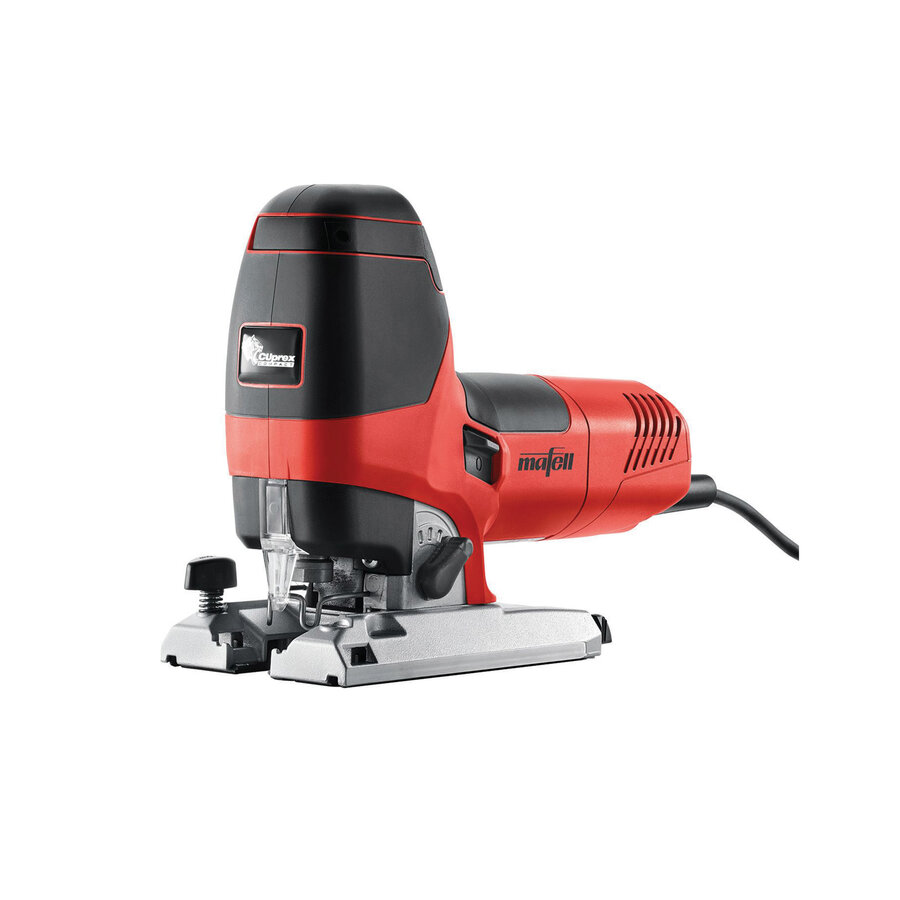

MAFELL - P1 CC MAXIMAX U T-MAX

Precision Jigsaw

Product ID: 917103 - MAFELL

The ergonomic design with Softgrip inserts provides secure and comfortable handling. The integrated dust extraction and blowing system keeps the cutting line clean, even without a vacuum cleaner. The variable speed range of 800 to 3,000 strokes per minute allows optimal adjustment to different materials. A stable base plate with a quick-clamping system ensures precise guidance, while the CUnex saw blade delivers exceptionally accurate cuts.

SPECIAL FEATURES

■ Integrated LED light improves visibility of the work area.

■ Universal blade holder allows 180° blade rotation, while the dust extraction connection efficiently removes dust and chips.

■ Safety lock and ergonomic trigger provide safe and controlled start-up, while the orbital action increases cutting speed.

■ Hook-and-loop strap securely holds the vacuum hose in place.

TECHNICAL SPECIFICATIONS

Stroke length: 26 mm

No-load stroke rate: 800–3,000 spm

Rated power: 900 W

Weight: 2.5 kg

Universal motor: 230 V / 50 Hz

APPLICATIONS

Straight cuts with a guide rail and CUnex blade
Circular cuts with a parallel guide
Cut-outs
Bevel cuts up to 45°

Suitable for a wide range of applications depending on the type of saw blade used.
